Overview
This page provides specific instructions for setting up MachForm Single Sign-On (SSO) with OneLogin SSO.
If you found this page directly, please note that it is a continuation of the main How to Set Up MachForm with Single Sign-On (SSO). Before proceeding, we recommend reviewing the main manual to understand the overall configuration steps and prerequisites. This page focuses only on the OneLogin SSO setup portion.
Step 1: Create OneLogin SAML App

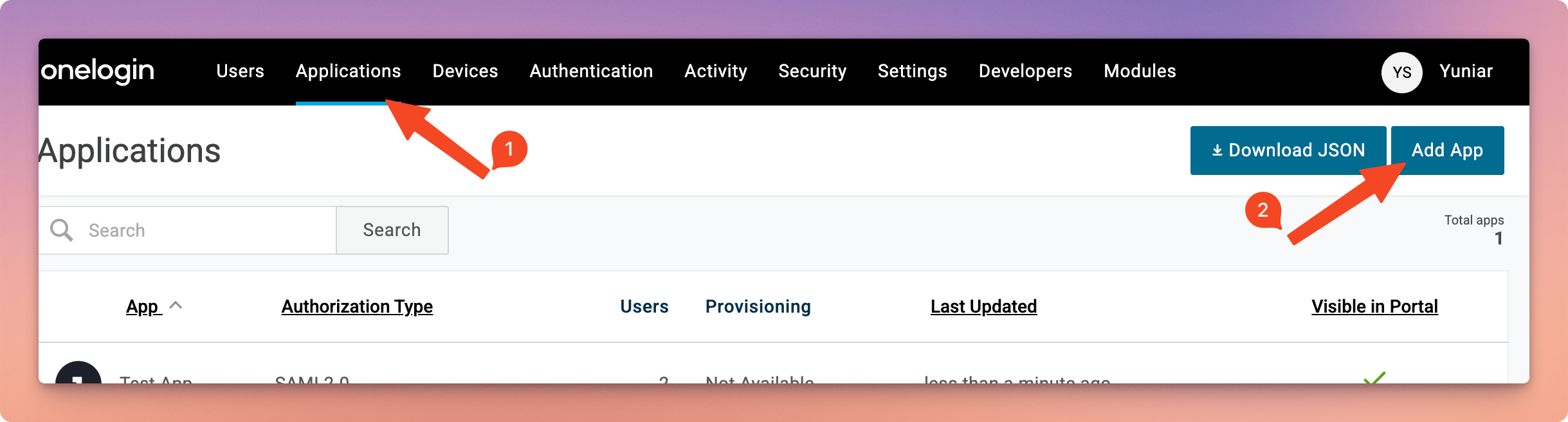

1. Log in to your OneLogin Admin account. Click Applications, and then click the Add App button in the top-right corner of the page.

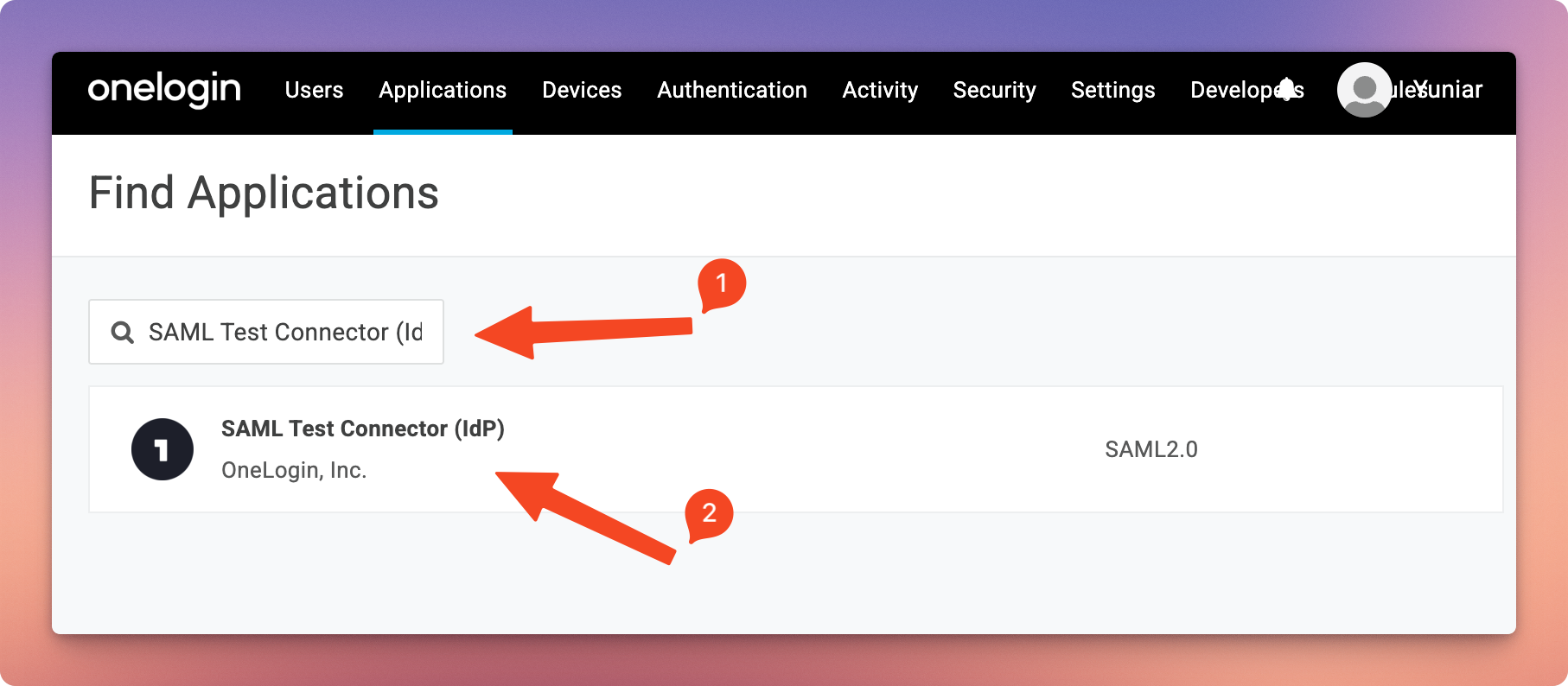

2. Search for SAML Test Connector (IdP) and click on it.

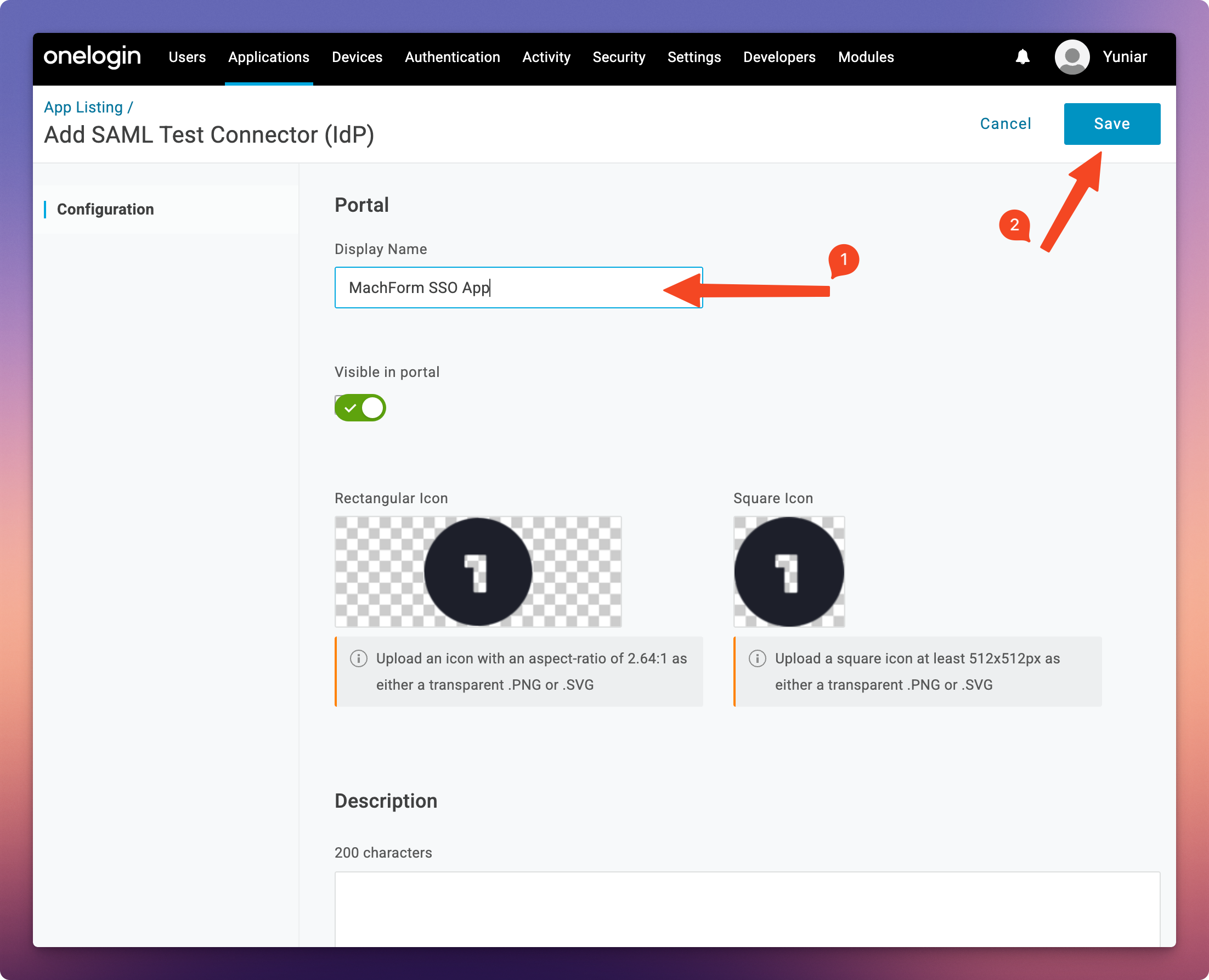

3. On the app creation page, enter your app name and click Save.

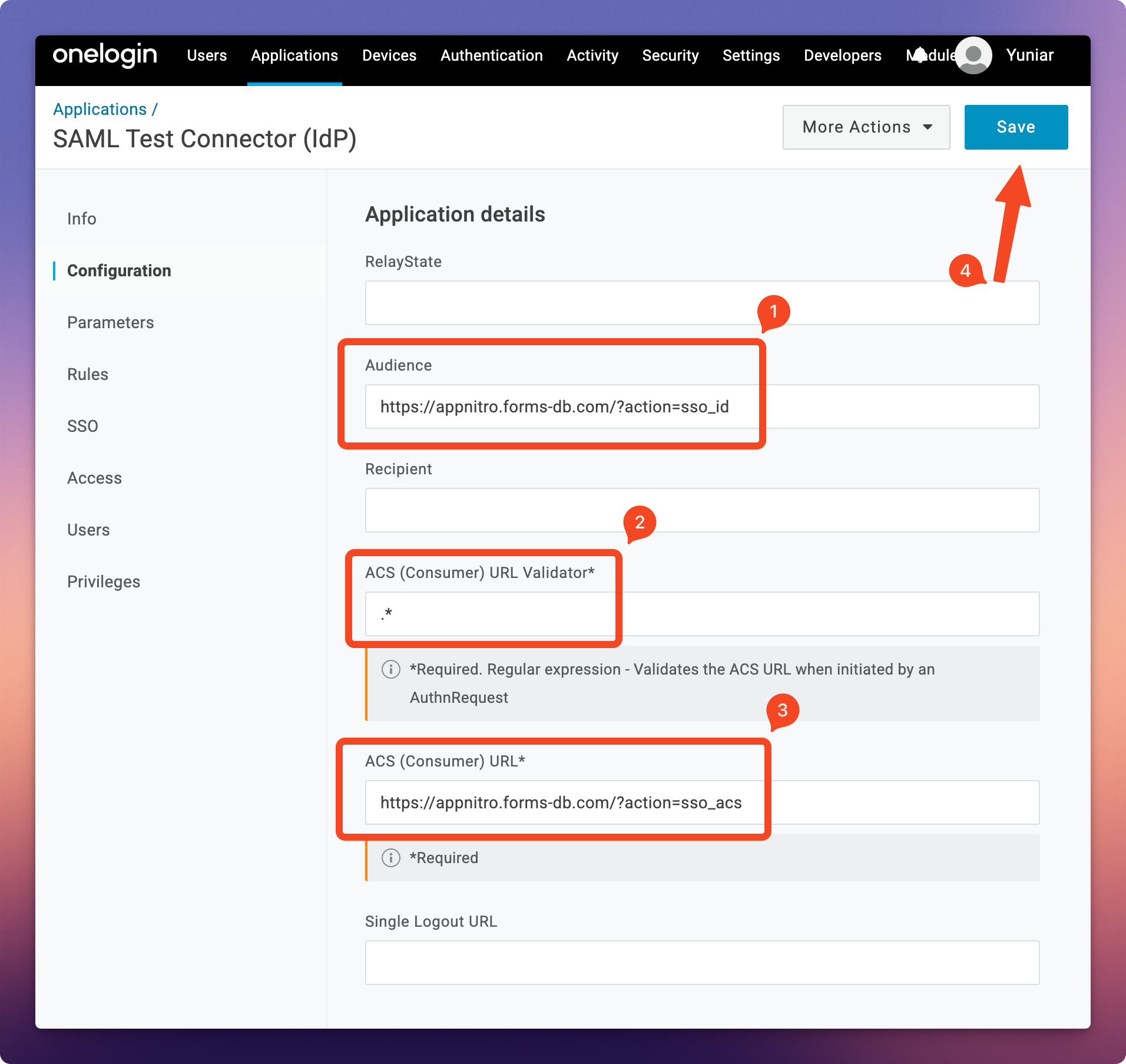

4. In the menu on the left, click Configuration and fill in your MachForm Service Provider Metadata.
For the ACS (Consumer) URL Validator, enter .* (a dot followed by an asterisk).
Click Save.
Step 2: Collect IdP Information

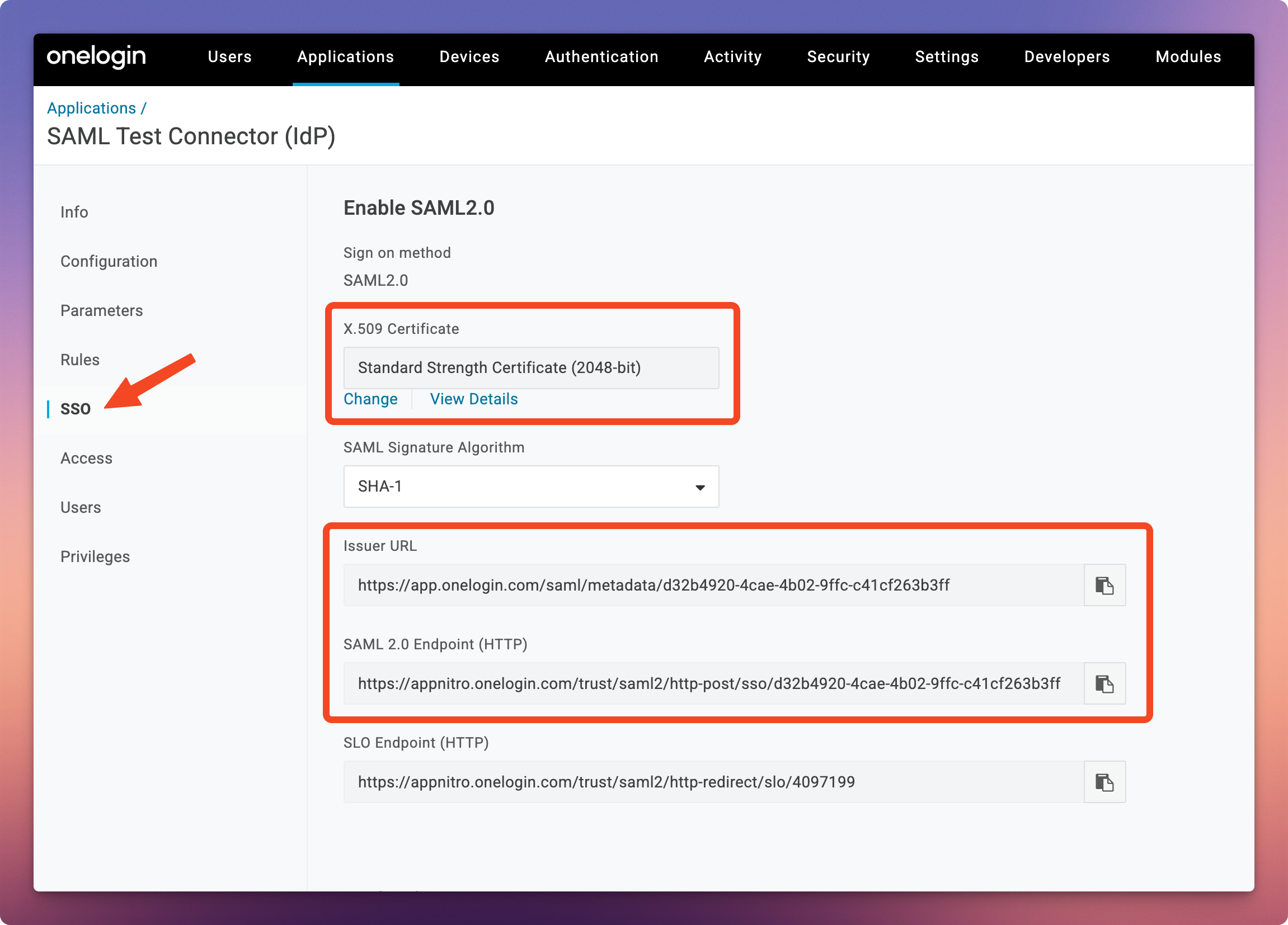

1. Click SSO to view your IdP Information details. Use this information to complete the SSO setup in MachForm later.

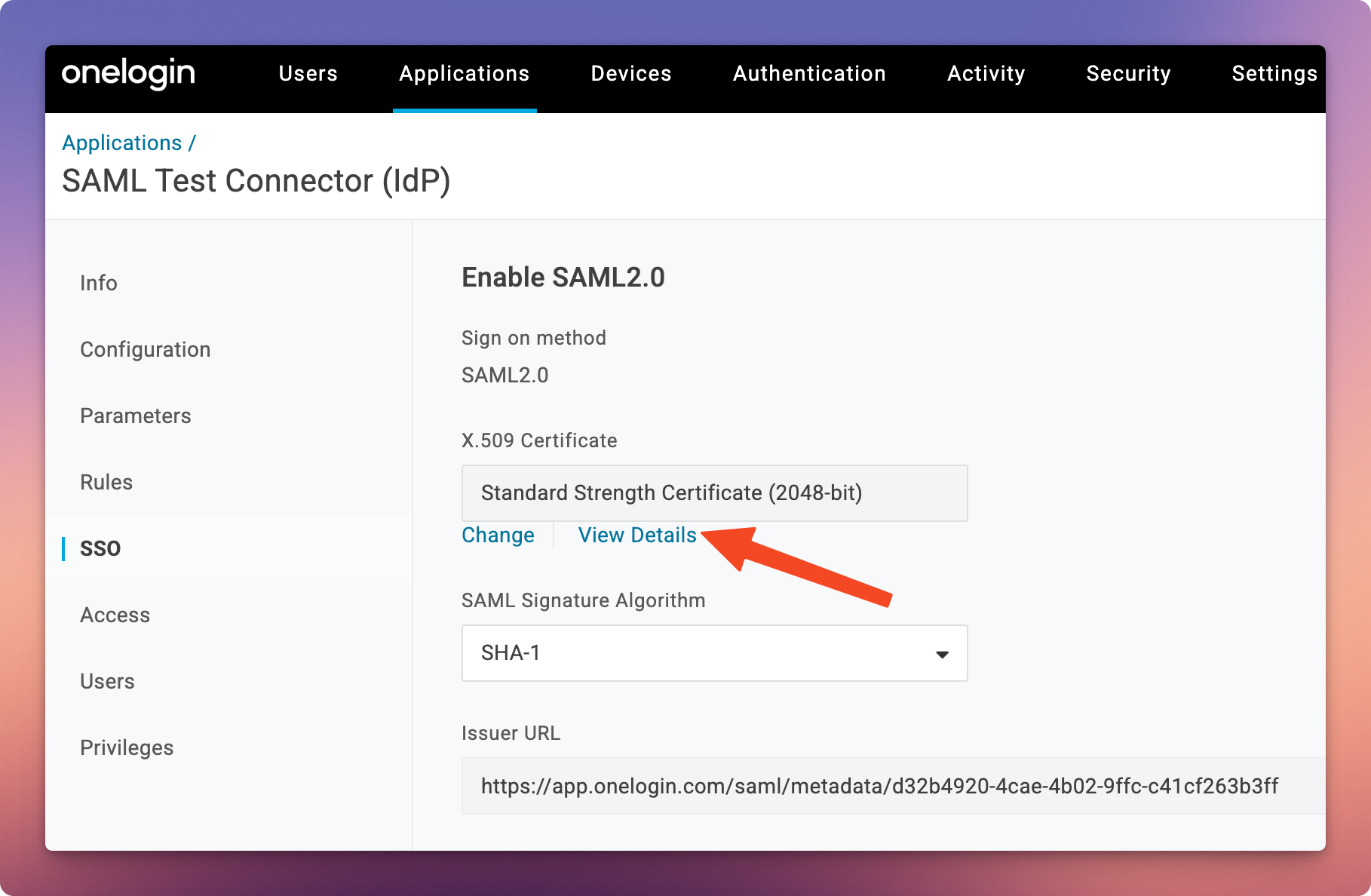

2. To view the X.509 Certificate, click the View Details below the certificate field.

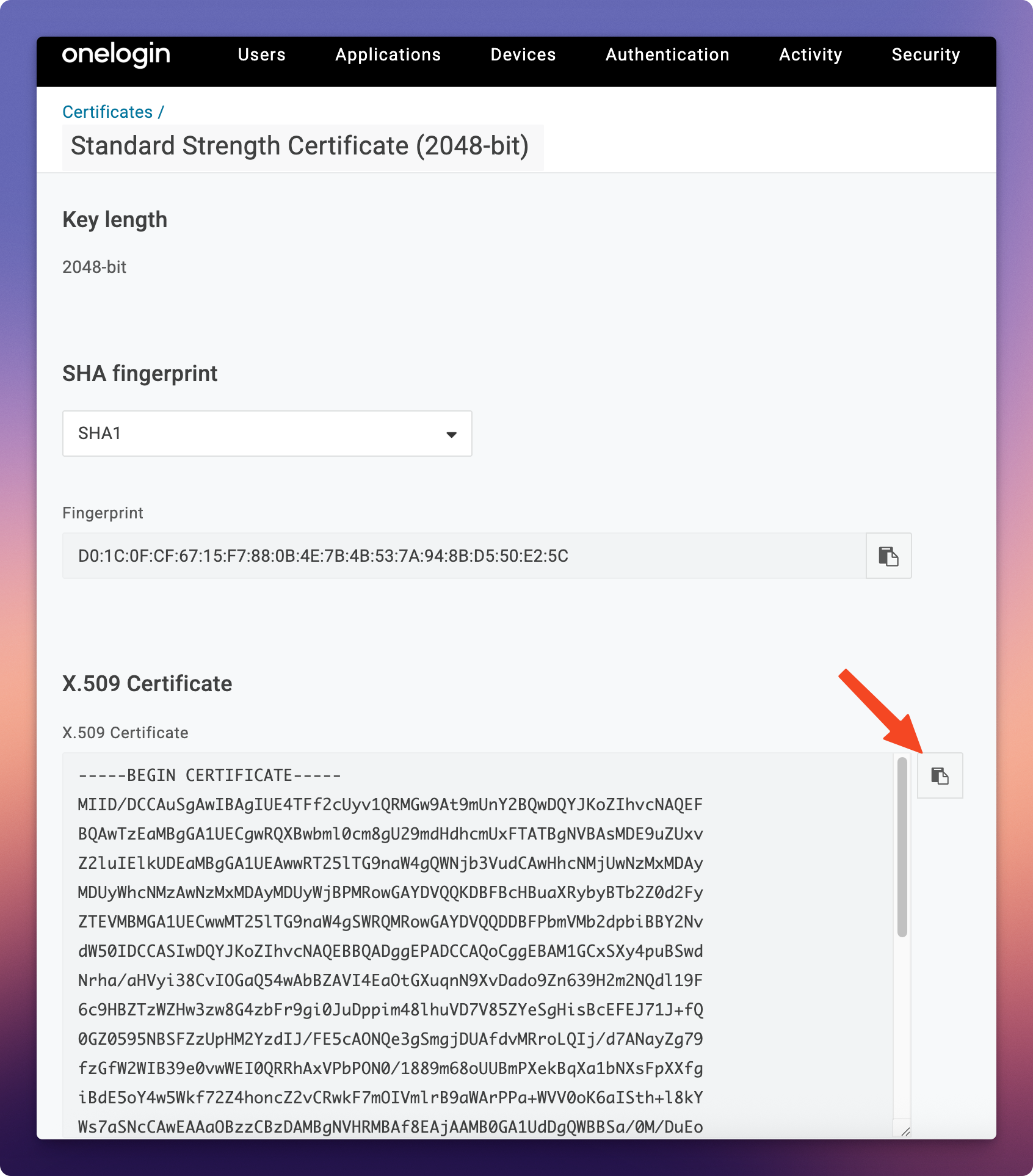

3. Click the copy icon next to the X.509 Certificate to copy the certificate.
You can now continue to Step 4 in How to Set Up MachForm with Single Sign-On (SSO).
